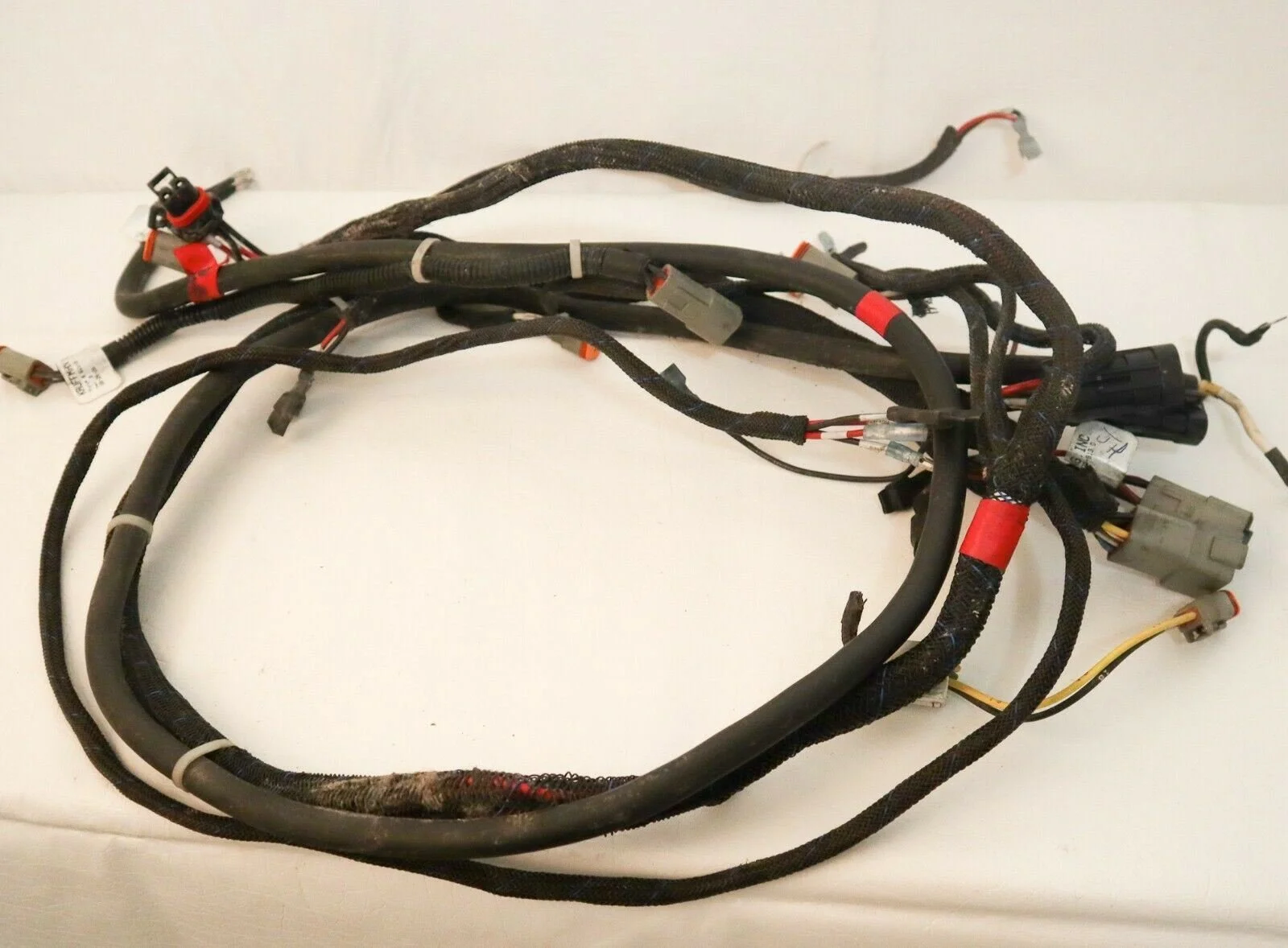

Genuine Windsor main wiring harness removed from a Windsor Chariot iScrub CSX24 floor scrubber.
Windsor parts documentation identifies the main harness as Part No. 86313710 / 8.631-371.0. The factory parts manual lists 86313710 specifically as the HARNESS, MAIN for the Chariot scrubber electrical system. Renusupplies

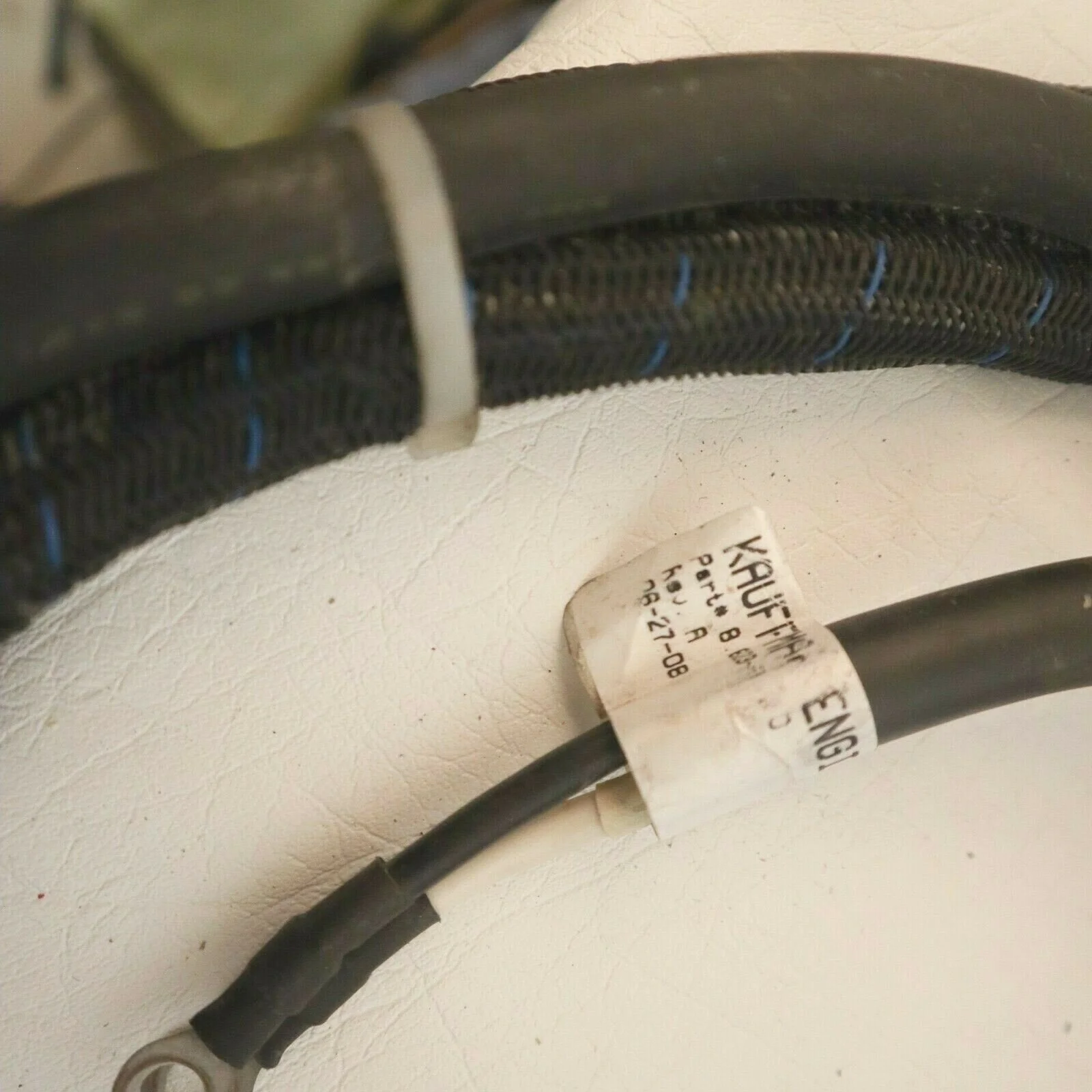

This is the primary machine wiring harness, connecting multiple electrical systems within the scrubber. It is substantially more than a simple cable and includes the original wiring, connectors, branches, terminals, and associated harness components shown in the photos.
PRODUCT DETAILS
• Brand: Windsor
• Equipment: Chariot iScrub floor scrubber
• Model removed from: CSX24
• Part type: Main Wiring Harness
• Windsor Part Number: 86313710
• Current-format Part Number: 8.631-371.0
• OEM replacement component
• Quantity: 1 harness assembly
A current OEM replacement for 86313710 is advertised at approximately $416, while another replacement-parts supplier lists the part at approximately $536, showing that this is a relatively expensive replacement component when purchased new. USA Clean
CONDITION

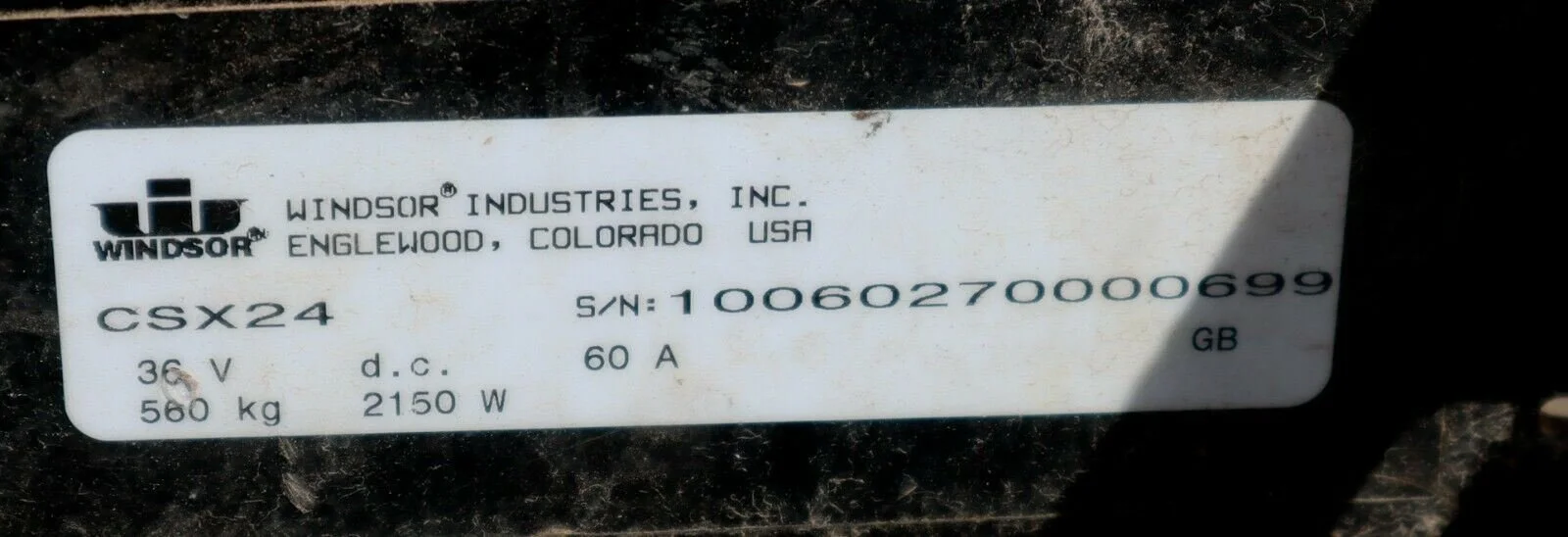

Used OEM part removed from a Windsor Chariot iScrub CSX24 that was running. Inspect the photographs carefully for connector configuration, wire routing, terminals, and overall condition to confirm suitability for your machine.
Because Windsor produced several Chariot/iScrub configurations, buyers should verify part number 86313710 and connector configuration against their equipment before purchasing.
Sold by Southern Utah Makerspace (Sumspace), a nonprofit organization supporting material reuse, practical manufacturing, and keeping useful industrial equipment and components in service.
