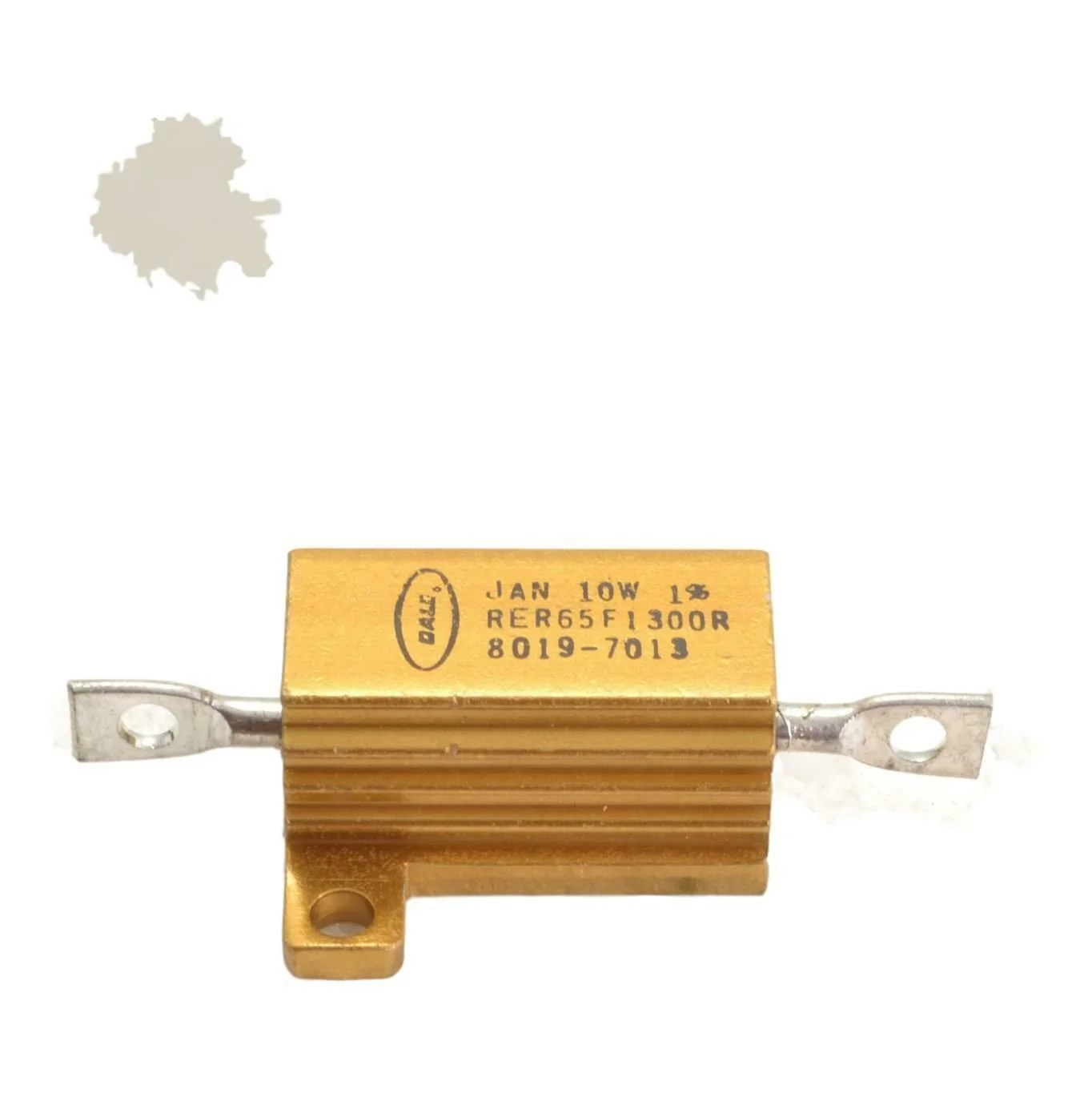

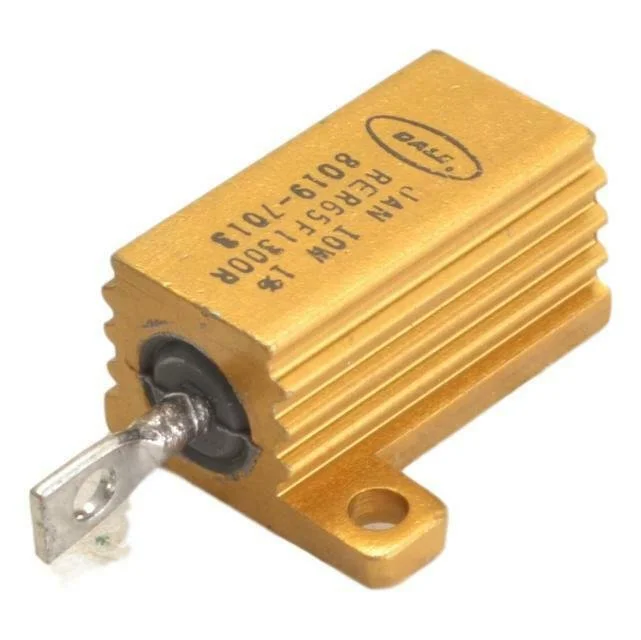

Military Specifications Inductive Wire Wound Resistor Fixed NSN 5905-00-509-4372 PN RER65F1300R.
New in Milspec package
Name Value
ELECTRICAL RESISTANCE 130.000 OHMS
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER 275.0
BODY LENGTH 0.750 INCHES NOMINAL
BODY WIDTH 0.438 INCHES NOMINAL
BODY HEIGHT 0.406 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH 0.562 INCHES NOMINAL
POWER DISSIPATION RATING IN WATTS 6.000 FREE AIR
AMBIENT TEMP AT FULL RATED POWER 25.0 CELSIUS
INCLOSURE TYPE ENCASED
MOUNTING HOLE SIZE 0.094 INCHES NOMINAL
