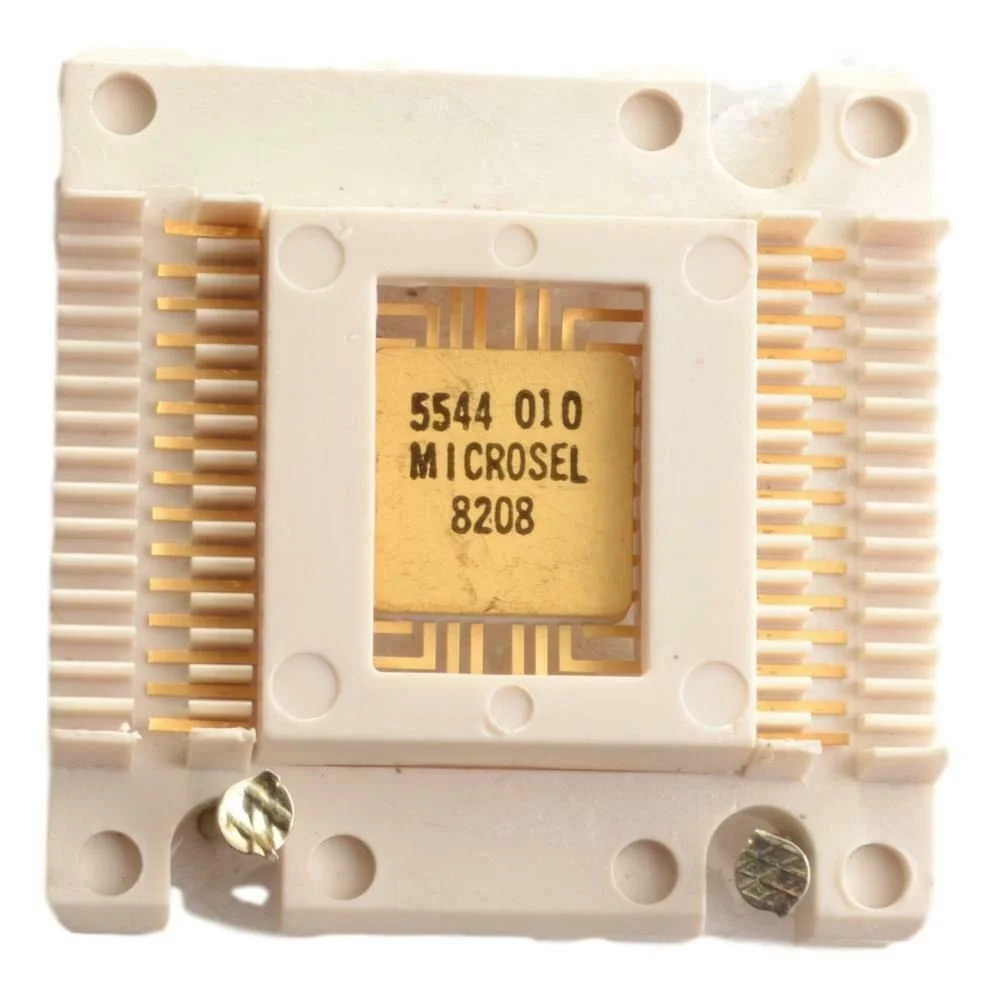

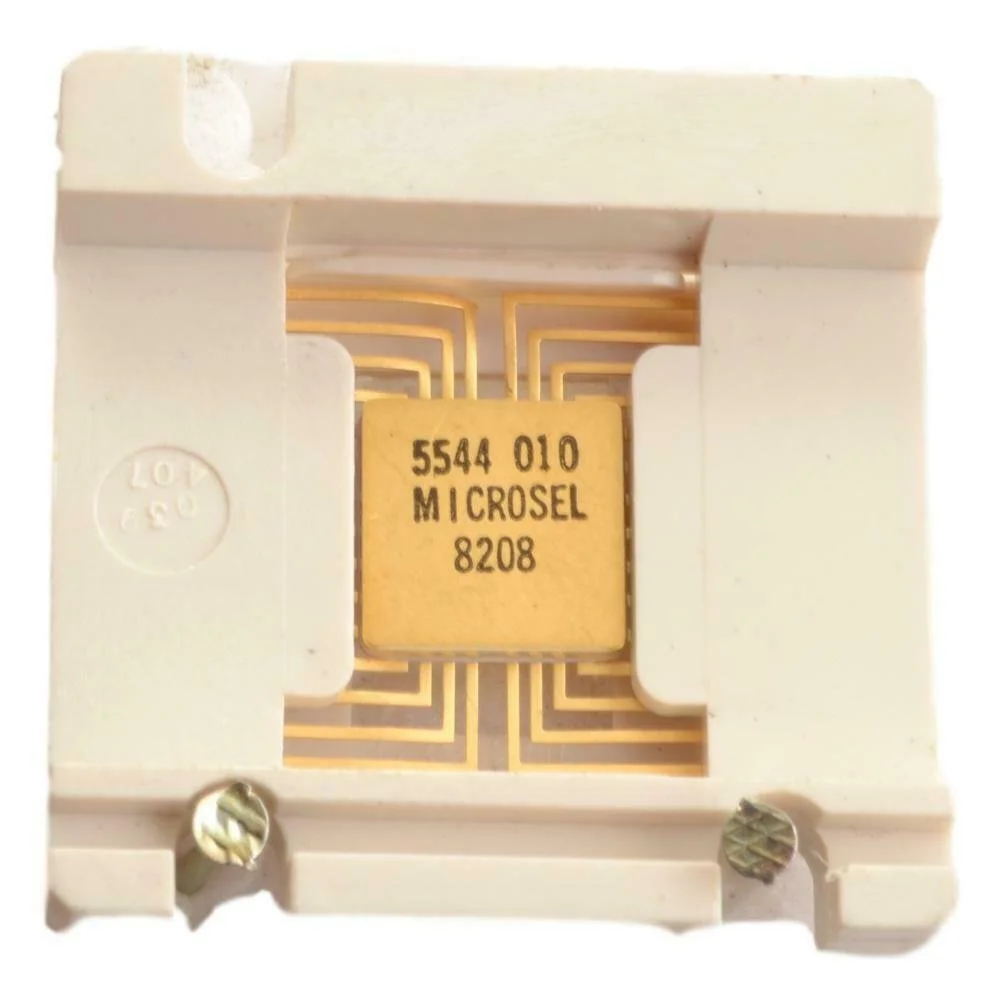

Honeywell International Inc. Microcircuit Memory
NSN 5962-00-137-5006
P/N D34005544-010
IMPORTANT CONTROL NOTE
Strategic List Item / Commerce Controlled List Item / Trade Security Controlled Item.
Buyer is responsible for verifying export, resale, end-use, and compliance requirements before purchase.
OBSERVED / ITEM INFORMATION
Manufacturer: Honeywell International Inc.
Item name: Microcircuit, Memory
NSN: 5962-00-137-5006
Part number: D34005544-010
Condition: New old stock military surplus
TECH INFO
Body length: 0.390 inches maximum
Body width: 0.390 inches maximum
Body height: 0.070 inches maximum
Maximum power dissipation rating: 307.2 milliwatts
Operating temperature range: -55.0 to +125.0 degrees Celsius
Storage temperature range: -65.0 to +150.0 degrees Celsius
Features provided: Hermetically sealed, monolithic, positive outputs, bipolar, negative outputs, unipolar, programmable, programmed, with enable, wire-or outputs
Inclosure material: Ceramic and glass
Inclosure configuration: Flat pack
Output logic form: P-type metal oxide-semiconductor logic
Input circuit pattern: 12 input
Terminal surface treatment: Solder
Voltage rating: -20.0 volts maximum power source and 8.3 volts maximum power source
Propagation delay time: 900 nanoseconds maximum, low to high level output
Memory device type: ROM
Memory capacity: Unknown
Test data document: 09128-D34005544 drawing
Terminal type and quantity: 30 flat leads
Unpackaged unit weight: 1.0 grams
FIIG / INC
FIIG: A458A0
INC: 41015
Description: Microcircuit, Memory
Detail: A circuit designed to store information and/or coded instructions. Item has pins or other connections to install in a computer or computing device.
REFERENCE / CROSS-REFERENCE NOTES
This listing is based first on the markings, photos, packaging, and available listing information for this item. NSNs may be associated with multiple part numbers, CAGE codes, manufacturers, revisions, or substitute items. Outside reference information is provided as a cross-reference aid only.
Please review the photos carefully and verify compatibility before purchase. Buyer is responsible for confirming fit, application, compliance, and suitability for use.
Questions, local pickup, or shipping arrangements?
Please use the Contact button in the main navigation at sumspace.org before purchase.
Sales support the work of Southern Utah Makerspace / Sumspace.
Email blake@sumspace.org, phone/text 435-705-8582.
