PR1 RB Box 11-9-2

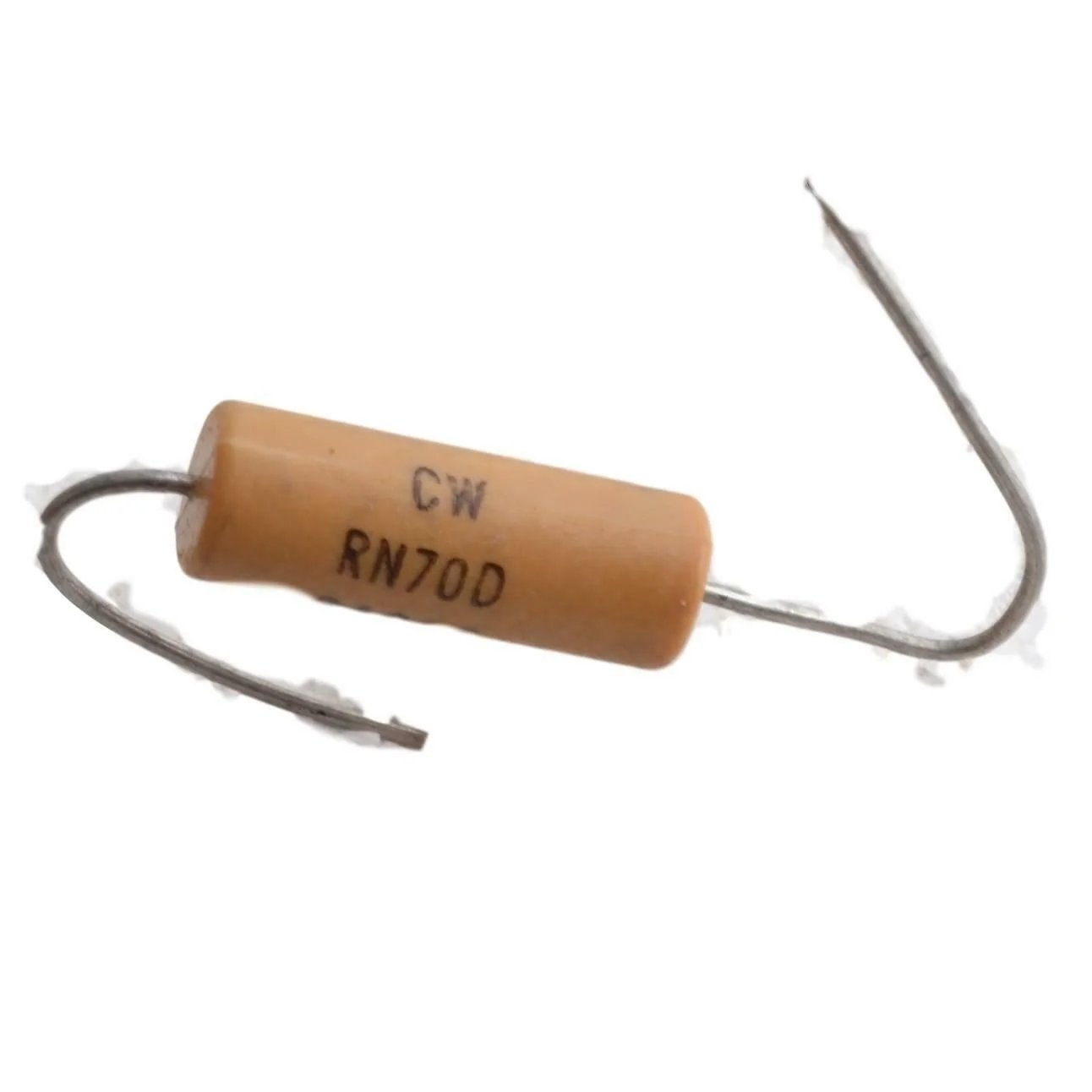

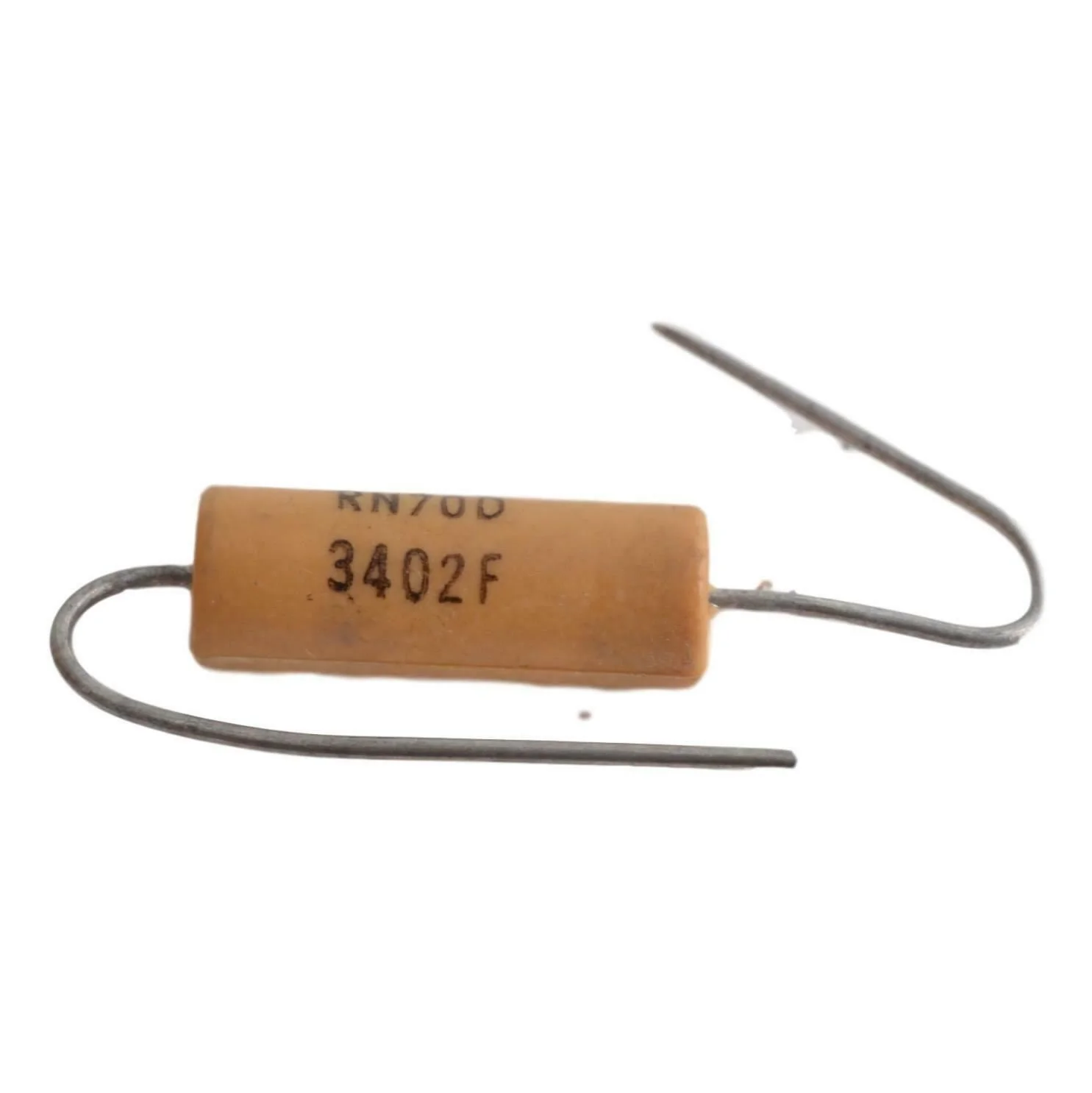

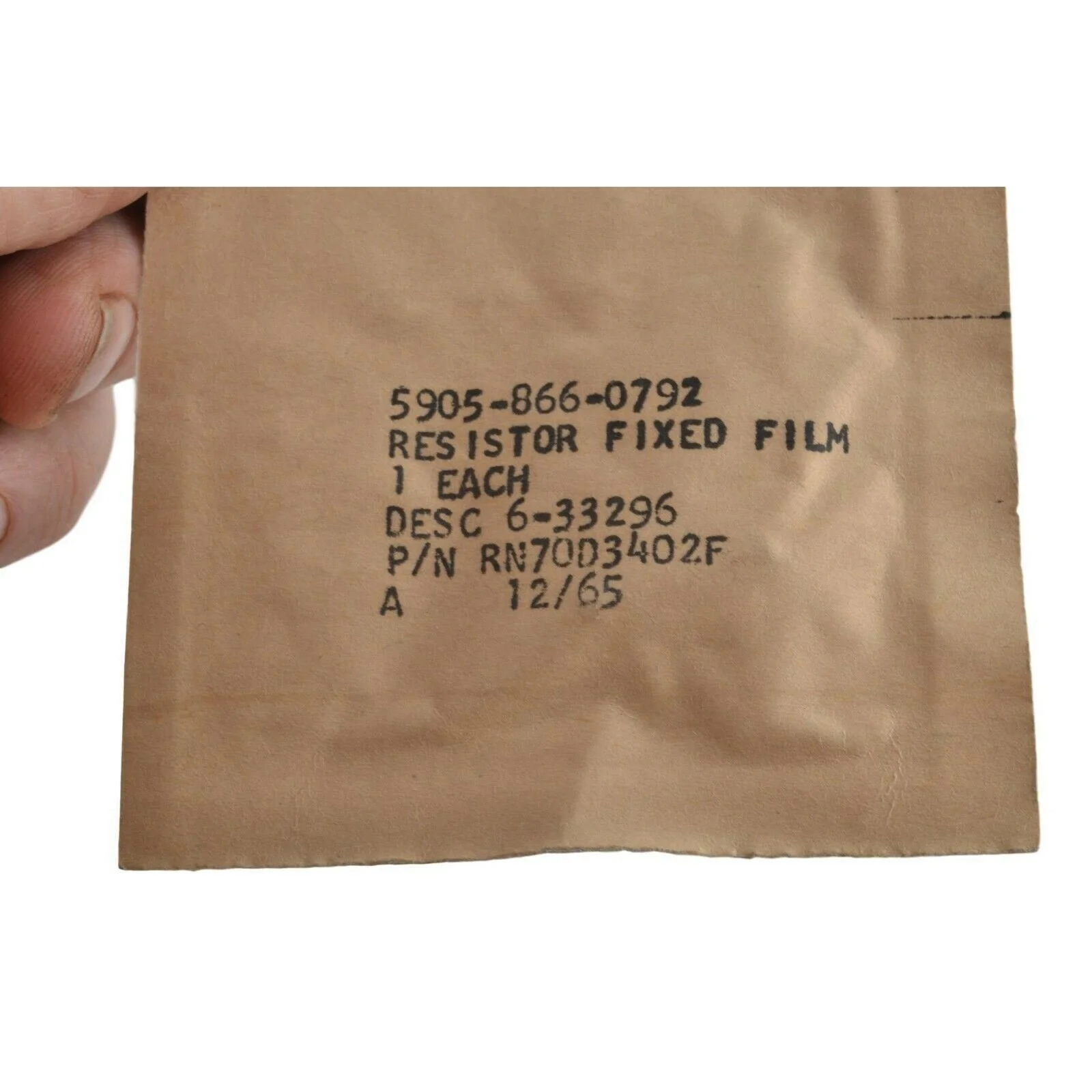

MILITARY SPECIFICATIONS Fixed Film Resistors NSN 5905-00-866-0792 PN RN70D3402F, REPLACEMENT NSN 5905-00-529-0508.
Please check our store frequently for new listings of NOS Military Surplus, we are sorting through thousands of Military Surplus Items and identifying and listing it as we can.
Tech Info
Name Value
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS -100.0 TO 100.0
ELECTRICAL RESISTANCE 34.000 KILOHMS
RESISTANCE TOLERANCE IN PERCENT -1.000 TO 1.000
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER 175.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS -55.0 TO 175.0
INCLOSURE METHOD ENCAPSULATED
TERMINAL TYPE WIRE LEAD
RELIABILITY INDICATOR ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT 0.001
BODY DIAMETER 0.250 INCHES NOMINAL
BODY LENGTH 0.750 INCHES NOMINAL
POWER DISSIPATION RATING IN WATTS 0.500 FREE AIR
AMBIENT TEMP AT FULL RATED POWER 125.0 DEG CELSIUS
STYLE DESIGNATOR AXIAL TERMINAL EACH END
TEST DATA DOCUMENT 81349-MILR55182 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
