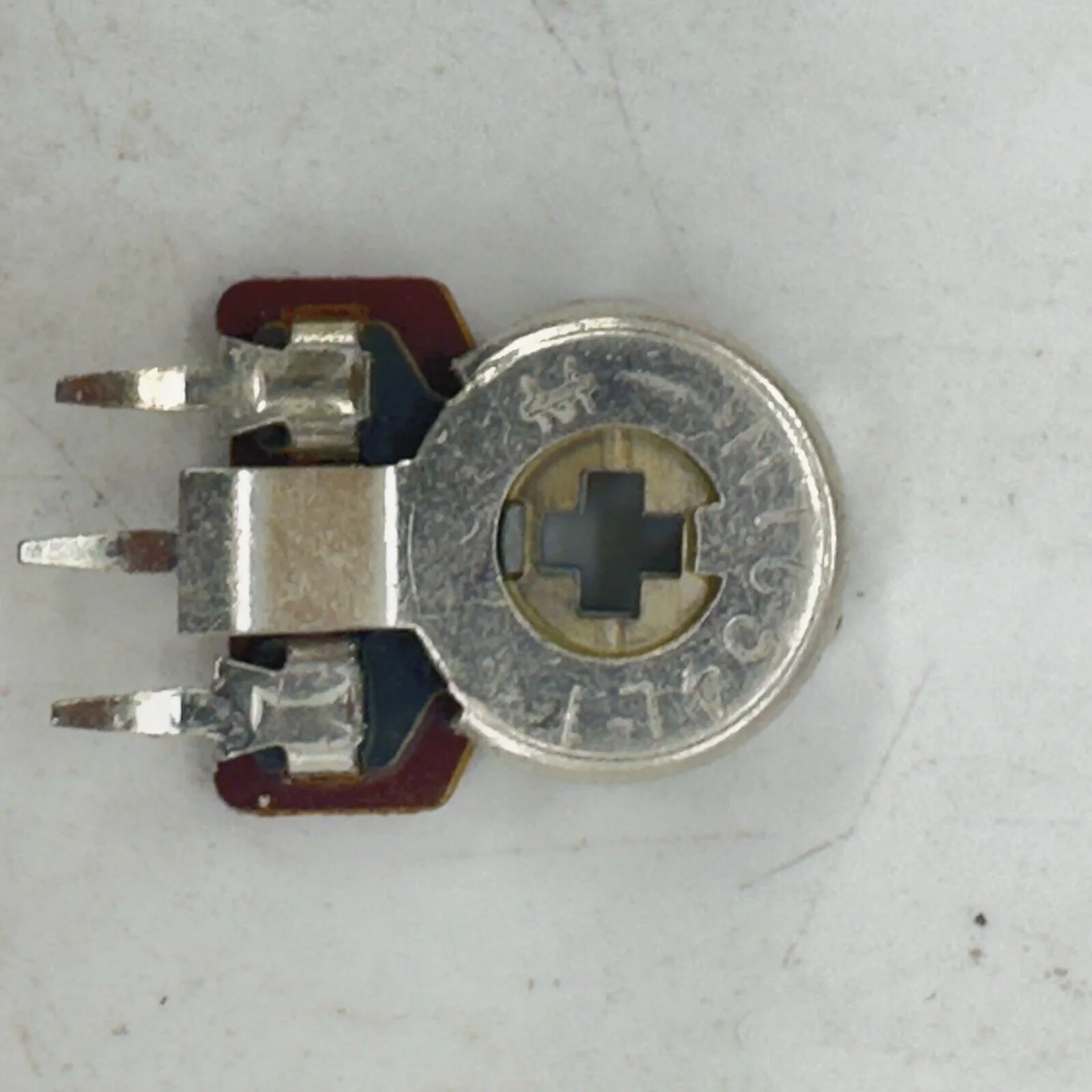

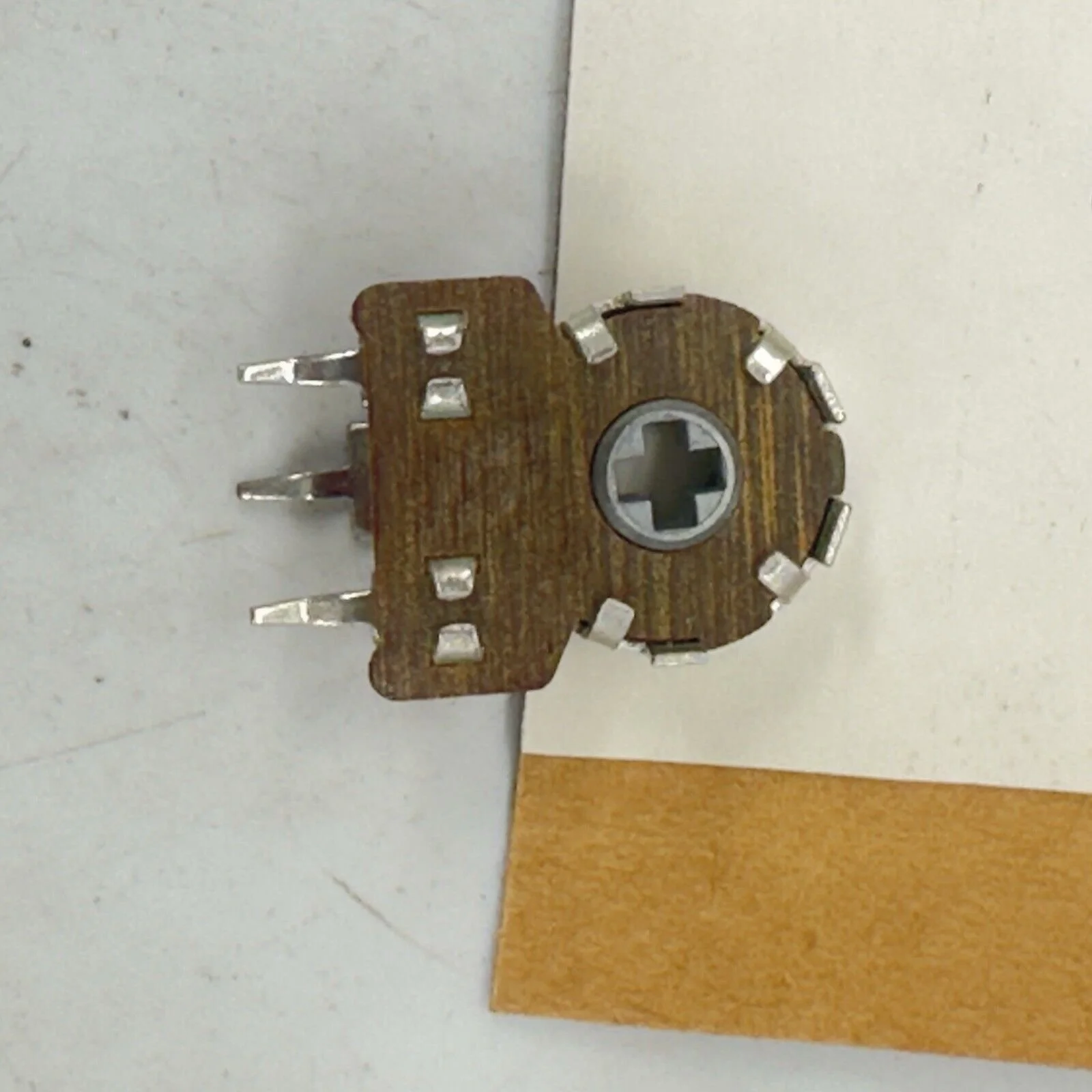

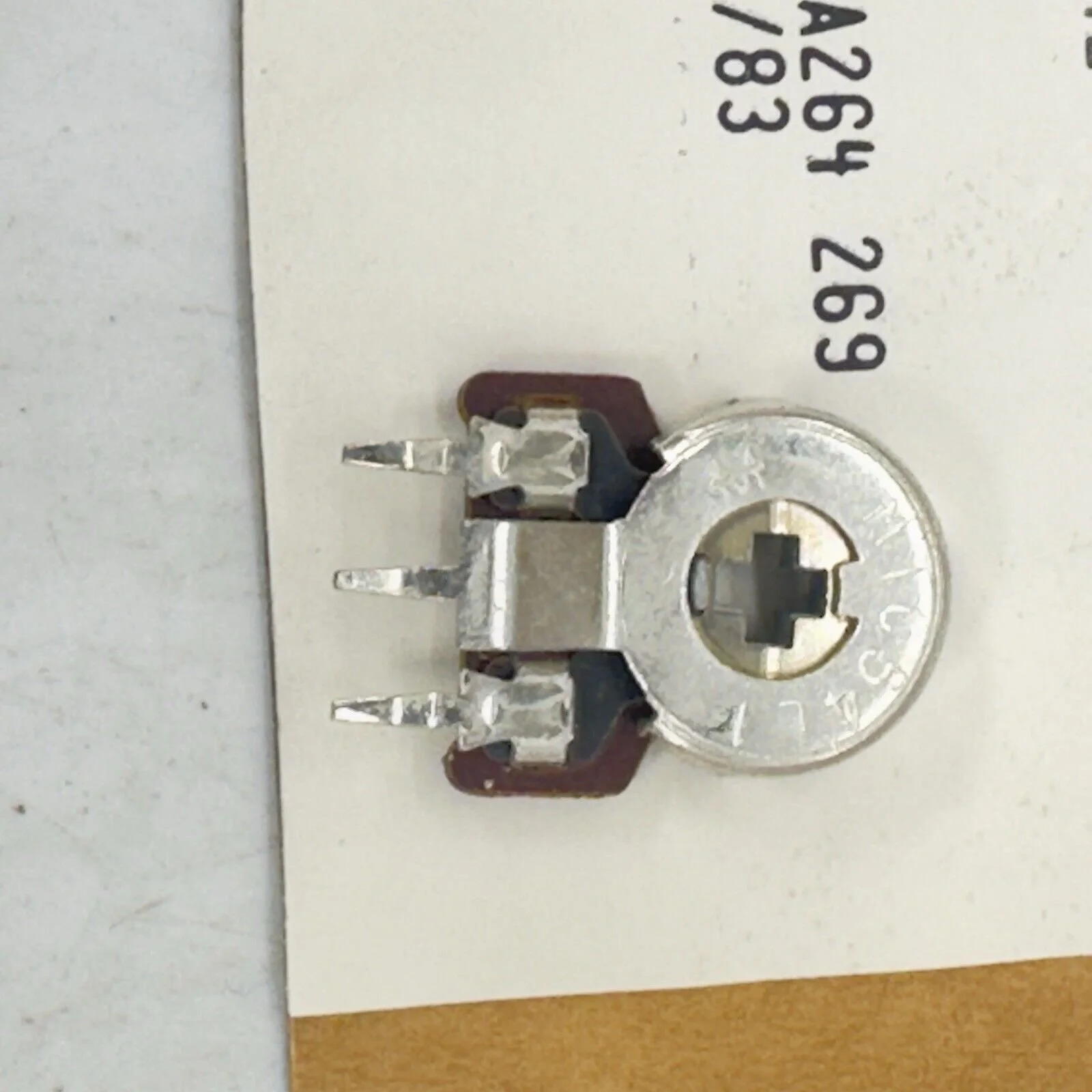

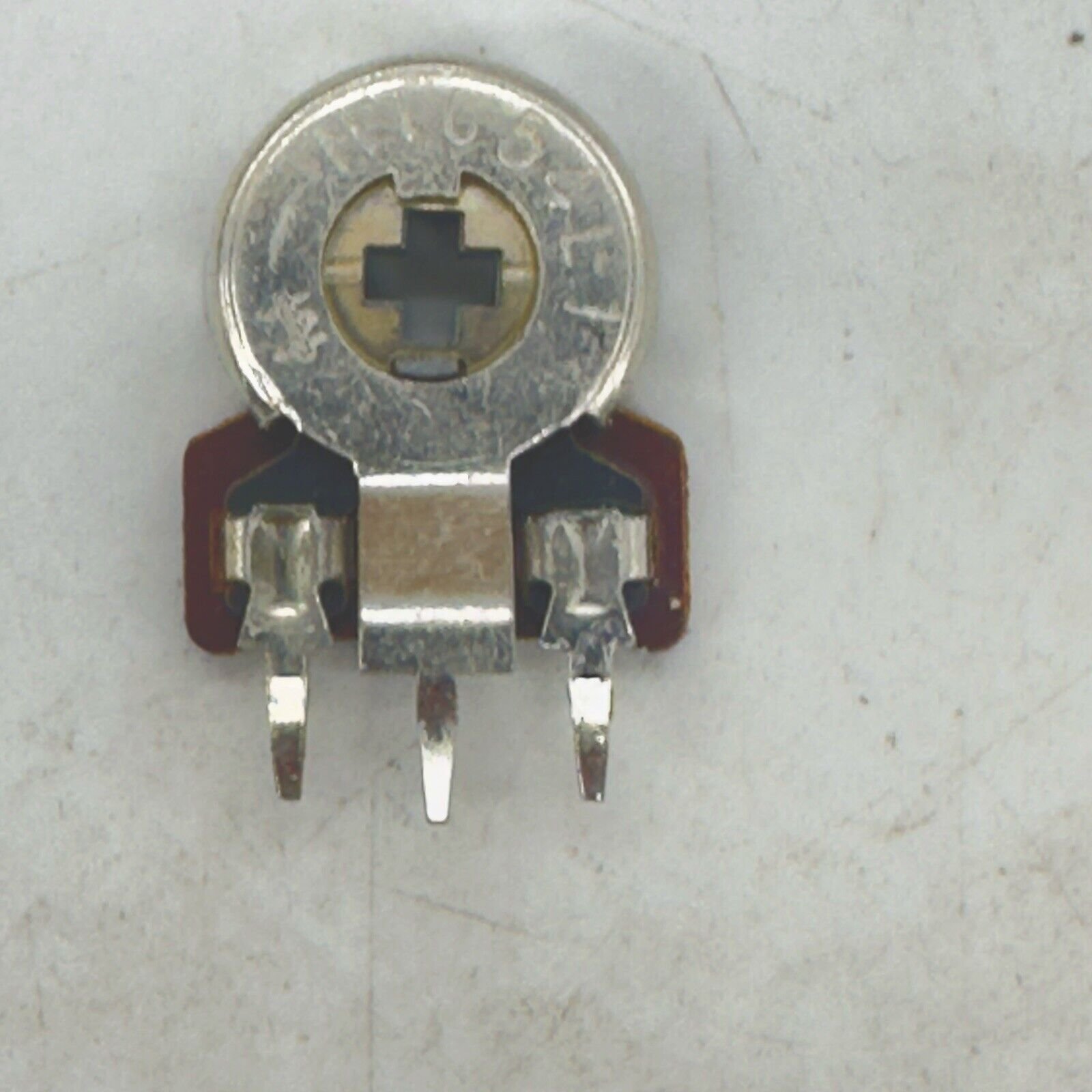

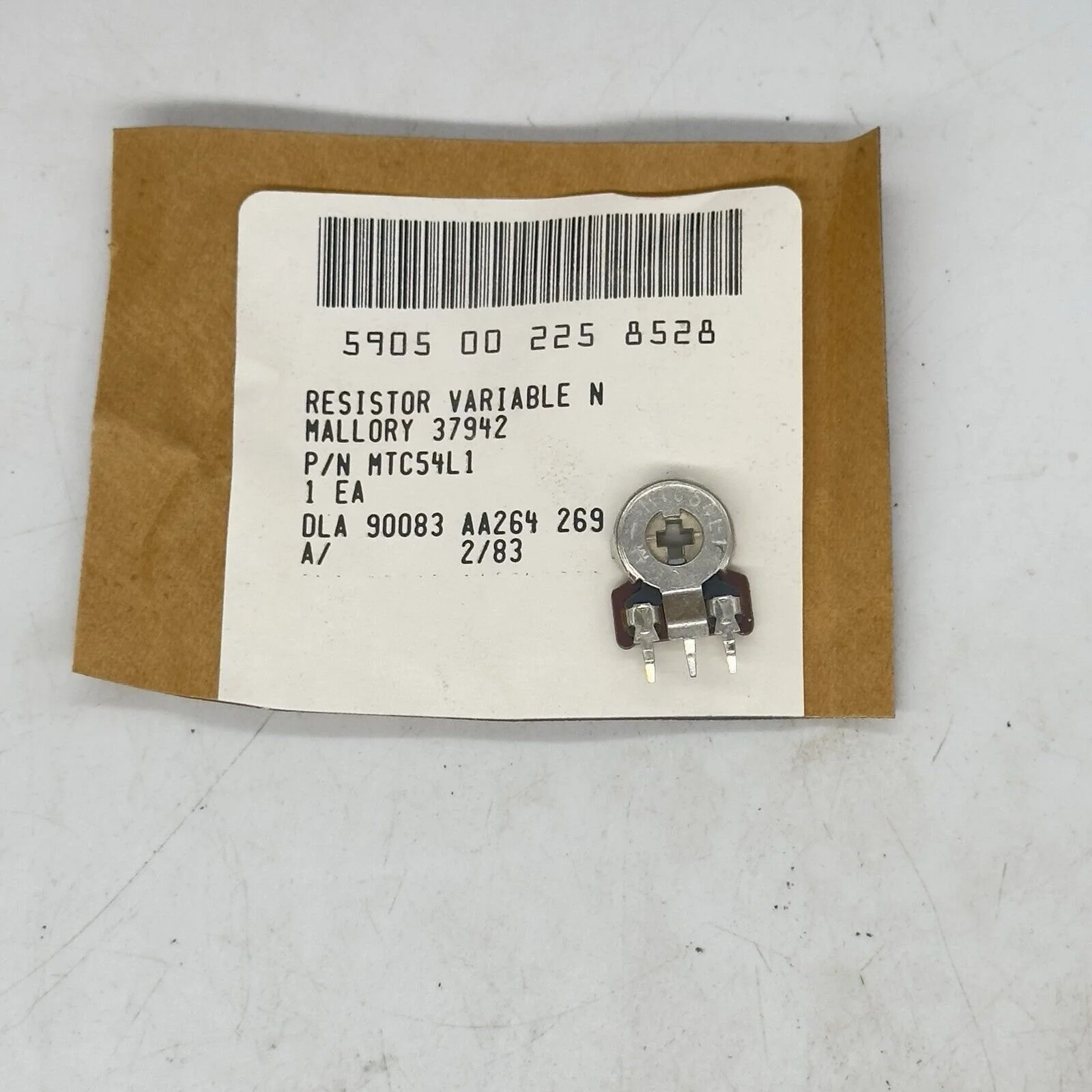

AMERICAN CAP. PN MTC54L1 RESISTOR,VARIABLE,NONWIRE WOUND, NSN 5905-00-225-8528

$9.99

50 available

BOURNS PN 3859A-X92-501A RESISTOR,VARIABLE,NONWIRE WOUND, NSN 5905-01-090-4082 50.0 KILOHMS SINGLE SECTION

From a large lot of Military Surplus.

WILL COMBINE SHIPPING WHEN POSSIBLE

Sumspace is direct seller for the Southern Utah Makerspace a 5013c charitable organization dedicated to more production of food, electricity, and purified water at or near the point of consumption. Imagine the positive impact, economically, environmentally, nutritionally. Peace and prosperity could spread the world over.

While you are here, why not browse around the store. I bet you know someone that could really use something we have for sale. Let's give it to them. After you pay for the item, in the check out page add the address of the person you are giving it forward too. I will pack it right and send you the tracking number. You will know your charitable contribution was delivered correctly. Or, hit the Share button!

Technical information

Name	Value
SECTION QUANTITY	1
BODY STYLE	CYLINDRICAL
RELIABILITY INDICATOR	NOT ESTABLISHED
BODY DIAMETER	0.592 INCHES NOMINAL
BODY LENGTH	0.179 INCHES NOMINAL
ACTUATOR TYPE	FLUSH DRIVE WITH SLOT-HOLE
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION	270.0 NOMINAL
MOUNTING METHOD	TERMINAL
ELECTRICAL RESISTANCE PER SECTION	50.0 KILOHMS SINGLE SECTION
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG	270.0 NOMINAL
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER	100.0 SINGLE SECTION
TERMINAL LOCATION	RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE
POWER DISSIPATION RATING PER SECTION IN WATTS	0.25 FREE AIR SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT	-30.0 TO 30.0 SINGLE SECTION
ACTUATOR TRAVEL CONTROL FEATURE	STOPS
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER	40.0 SINGLE SECTION
TERMINAL TYPE AND QUANTITY	3 TAB, SOLDER LUG

FIIG INC information

FIIG	INC	Description	Detail
A002A0	37405	RESISTOR,VARIABLE,NONWIRE WOUND,	A RESISTOR IN WHICH A SLIDING OR ROLLING CONTACT MOVES OVER AN EXPOSED AREA OF THE RESISTIVE ELEMENT TO CHANGE THE OHMIC VALUE OF THE OUTPUT. THE FUNCTIONAL TOLERANCE (LINEARITY), IF GIVEN, OF THE OUTPUT IS GREATER THAN PLUS OR MINUS 1 PERCENT ON LINEAR OUTPUTS. SPECIFIED OUTPUTS SUCH AS SINE, COSINE, TANGENT, AND THE LIKE, SHALL BE CONSIDERED TO BE PRECISION. FOR ITEMS HAVING MANUALLY POSITIONED TAPS DESIGNED TO BE SET AND FIXED PRIOR TO USE, SEE RESISTOR, ADJUSTABLE. FOR ITEMS WITH STEP BY STEP VARIATION, SEE RHEOSTAT AND RESISTOR, STEP BY STEP. FOR TANDEM-MOUNTED ITEMS DESIGNED TO FUNCTION TOGETHER AS AN ATTENUATOR (AND RATED ACCORDINGLY), SEE ATTENUATOR, VARIABLE. EXCLUDES:RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; AND RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
